All the carbide end mill cutters are processed by advanced five-axis grinding machines. The products have high precision,and also can be used for rough machining of high metal removal, as well as finish machining in high precision and high surface quality. We have all sizes, at minimum 0.2 mm, which makes the process of very small part can be easily achieved. Moreover, the mill structure is reasonable, the sharp cutting edge fits well with the tool strength, which brings faster cutting process and longer service life.
| Material: | |
|---|---|
| Coating: | |
| Quantity: | |

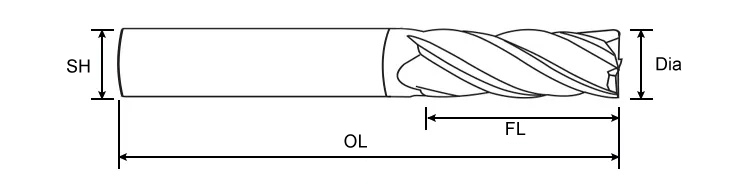

END MILL
SHOWIRK
45EM4F
Unit:mm
| Dia | FL | SH | OL | Pack Qty | Code |
| 1 | 3 | 4 | 50 | 1 | 45EM4F150 |
| 2 | 6 | 4 | 50 | 1 | 45EM4F250 |
| 3 | 8 | 3 | 50 | 1 | 45EM4F350 |
| 4 | 10 | 4 | 50 | 1 | 45EM4F450 |
| 5 | 13 | 5 | 50 | 1 | 45EM4F550 |
| 6 | 15 | 6 | 50 | 1 | 45EM4F650 |
| 8 | 20 | 8 | 60 | 1 | 45EM4F860 |
| 3 | 12 | 3 | 75 | 1 | 45EM4F375 |
| 4 | 15 | 4 | 75 | 1 | 45EM4F475 |
| 5 | 20 | 5 | 75 | 1 | 45EM4F575 |
| 6 | 20 | 6 | 75 | 1 | 45EM4F675 |
| 8 | 25 | 8 | 75 | 1 | 45EM4F875 |
| 10 | 25 | 10 | 75 | 1 | 45EM4F1075 |
| 12 | 30 | 12 | 75 | 1 | 45EM4F1275 |
| 3 | 12 | 3 | 100 | 1 | 45EM4F3100 |
| 4 | 16 | 4 | 100 | 1 | 45EM4F4100 |
| 5 | 20 | 5 | 100 | 1 | 45EM4F5100 |
| 6 | 25 | 6 | 100 | 1 | 45EM4F6100 |
| 8 | 35 | 8 | 100 | 1 | 45EM4F8100 |
| 10 | 40 | 10 | 100 | 1 | 45EM4F10100 |
| 12 | 45 | 12 | 100 | 1 | 45EM4F12100 |
| 14 | 45 | 14 | 100 | 1 | 45EM4F14100 |
| 16 | 45 | 16 | 100 | 1 | 45EM4F16100 |
| 18 | 45 | 18 | 100 | 1 | 45EM4F18100 |
| 20 | 45 | 20 | 100 | 1 | 45EM4F20100 |
| 6 | 25 | 6 | 150 | 1 | 45EM4F6150 |
| 8 | 35 | 8 | 150 | 1 | 45EM4F8150 |
| 10 | 45 | 10 | 150 | 1 | 45EM4F10150 |
| 12 | 45 | 12 | 150 | 1 | 45EM4F12150 |
| 14 | 45 | 14 | 150 | 1 | 45EM4F14150 |
| 16 | 50 | 16 | 150 | 1 | 45EM4F16150 |
| 18 | 50 | 18 | 150 | 1 | 45EM4F18150 |
| 20 | 55 | 20 | 150 | 1 | 45EM4F20150 |
Unit:mm
| Dia | FL | SH | OL | Pack Qty | Code |
| 1 | 3 | 4 | 50 | 1 | 45EM4F150 |
| 2 | 6 | 4 | 50 | 1 | 45EM4F250 |
| 3 | 8 | 3 | 50 | 1 | 45EM4F350 |
| 4 | 10 | 4 | 50 | 1 | 45EM4F450 |
| 5 | 13 | 5 | 50 | 1 | 45EM4F550 |
| 6 | 15 | 6 | 50 | 1 | 45EM4F650 |
| 8 | 20 | 8 | 60 | 1 | 45EM4F860 |
| 3 | 12 | 3 | 75 | 1 | 45EM4F375 |
| 4 | 15 | 4 | 75 | 1 | 45EM4F475 |
| 5 | 20 | 5 | 75 | 1 | 45EM4F575 |
| 6 | 20 | 6 | 75 | 1 | 45EM4F675 |
| 8 | 25 | 8 | 75 | 1 | 45EM4F875 |
| 10 | 25 | 10 | 75 | 1 | 45EM4F1075 |
| 12 | 30 | 12 | 75 | 1 | 45EM4F1275 |
| 3 | 12 | 3 | 100 | 1 | 45EM4F3100 |
| 4 | 16 | 4 | 100 | 1 | 45EM4F4100 |
| 5 | 20 | 5 | 100 | 1 | 45EM4F5100 |
| 6 | 25 | 6 | 100 | 1 | 45EM4F6100 |
| 8 | 35 | 8 | 100 | 1 | 45EM4F8100 |
| 10 | 40 | 10 | 100 | 1 | 45EM4F10100 |
| 12 | 45 | 12 | 100 | 1 | 45EM4F12100 |
| 14 | 45 | 14 | 100 | 1 | 45EM4F14100 |
| 16 | 45 | 16 | 100 | 1 | 45EM4F16100 |
| 18 | 45 | 18 | 100 | 1 | 45EM4F18100 |
| 20 | 45 | 20 | 100 | 1 | 45EM4F20100 |
| 6 | 25 | 6 | 150 | 1 | 45EM4F6150 |
| 8 | 35 | 8 | 150 | 1 | 45EM4F8150 |
| 10 | 45 | 10 | 150 | 1 | 45EM4F10150 |
| 12 | 45 | 12 | 150 | 1 | 45EM4F12150 |
| 14 | 45 | 14 | 150 | 1 | 45EM4F14150 |
| 16 | 50 | 16 | 150 | 1 | 45EM4F16150 |
| 18 | 50 | 18 | 150 | 1 | 45EM4F18150 |
| 20 | 55 | 20 | 150 | 1 | 45EM4F20150 |
